A02 - Electronic lock with MIFARE® Classic, DESFire® / LEGIC

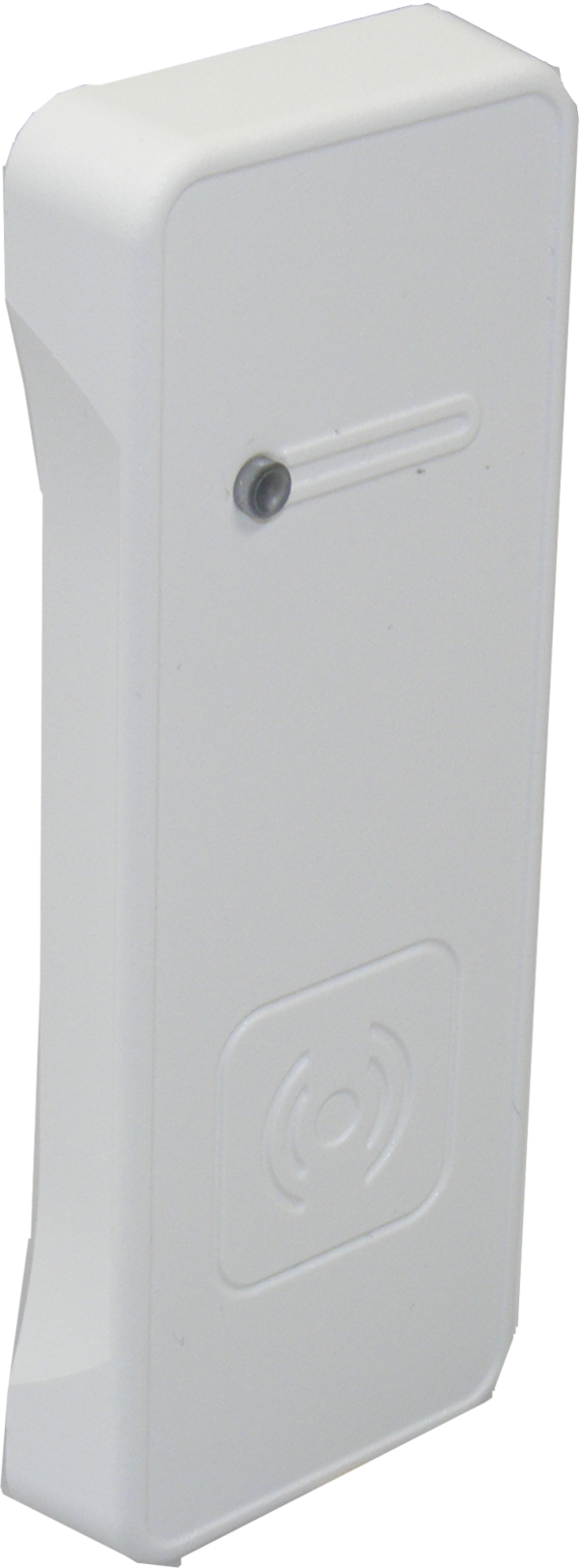

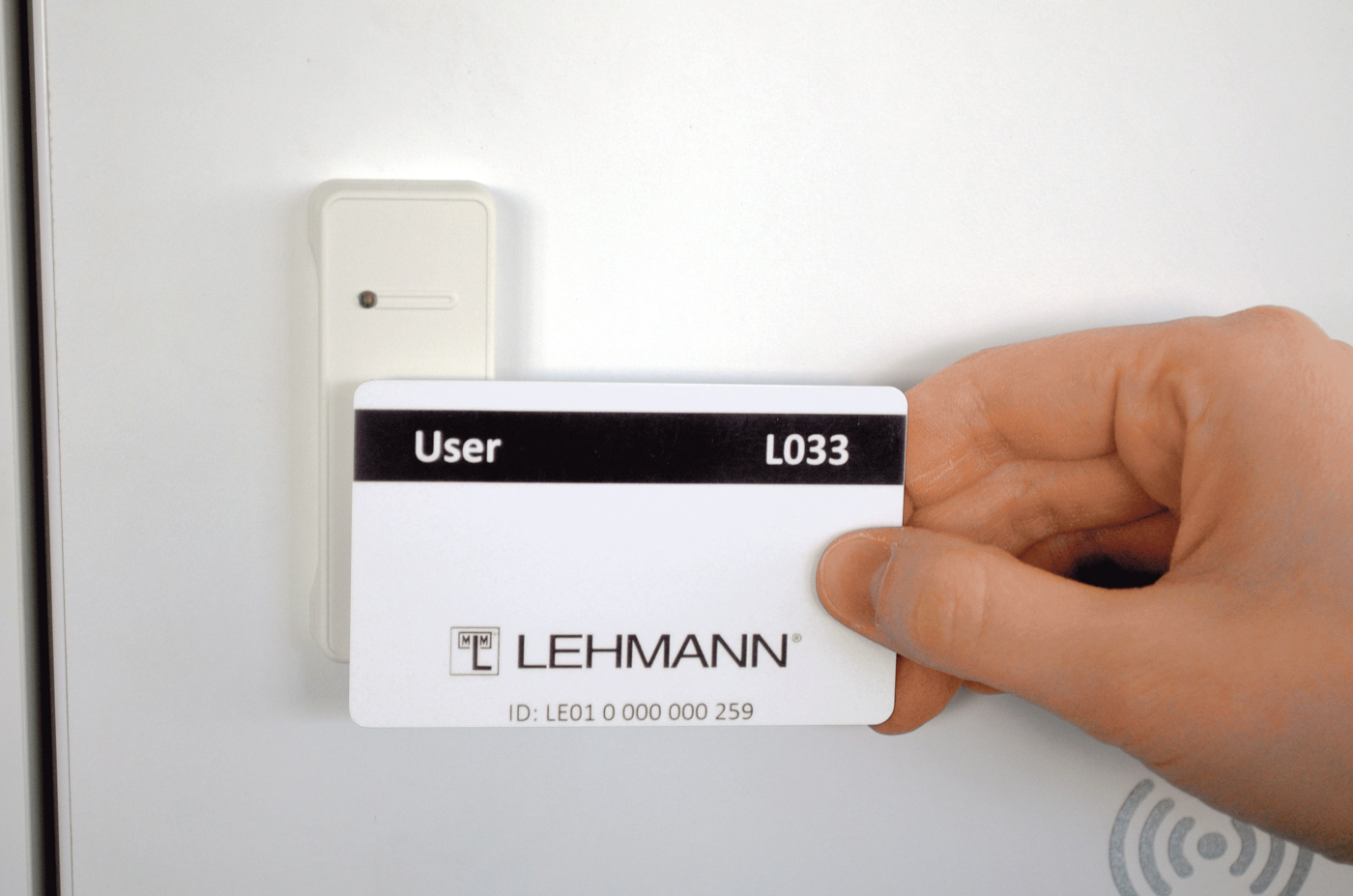

The L033-A02 (MIFARE®) and L043-A02 (LEGIC) RFID readers combine modern technology with a slim housing and integrated grip recess. Supporting various RFID standards such as MIFARE® Classic, DESFire®, LEGIC advant, and HID iClass, the system allows flexible integration into different applications. Optical and acoustic signals, freely selectable operating modes, and smartphone use via the LEHMANN Transponder App ensure maximum user convenience. An optional spacer is available for mounting on steel surfaces. The micro-USB port enables emergency power supply and firmware updates. Designed for external mounting and compatible with LEHMANN locks M300, M500, and M410.

Emergency power supply

Operable with smartphone

Freecode function

Fixcode function

Downloads & Technical data
CustomersupportHello! 👋 We are happy to support you from conception to commissioning.

Battery operated
M300
M300

Motorised electronic lock with 3-point locking

Battery operated
M410
M410

Electronic lock with fixed bolt or spring loaded slambolt

Battery operated
M500
M500

Electronic pedestal lock

Product details A02

13,56MHZ MIFARE® L033-A02 / 13,56MHZ LEGIC L043-A02



  • MIFARE® RFID-reader compatible with: 13,56MHz MIFARE® Classic / MIFARE® DESFire® EV1, EV2, ISO 14443

  • LEGIC RFID-reader compatible with: LEGIC prime, LEGIC advant, MIFARE® Classic, MIFARE® DESFire® EV1 & EV2, HID iClass, ISO 14443, ISO 15693

  • Optical and acoustical signaling

  • Use of smartphones with the LEHMANN transponder app*

  • Use of existing transponders possible**

  • Change of operating mode (assigned use / shared use)

  • Small casing with handle recess with L033-A02 and L033-A03 for mounting on pedestal panels

  • Optional spacer for mounting on steel and to enlarge the handle recess

  • Micro USB port integrated in RFID-Reader for emergency power supply via mobile phone charge pack and for firmware updates.

  • RFID-Reader for external fitting

  • LEGIC L043-A02 compatible with lock M300, M500 and M410 MIFARE® Classic and LEGIC prime transponders have limited use.



Compatibility and reading distance of third-party transponders need to be verified. The distance between the RFID readers must be at least 5 cm.



* MIFARE systems only support Android smartphones. LEGIC systems without a master-token support Android smartphones and iPhones only with master cards. FW 2.x is required.

** Third-party transponders must be checked in advance for compatibility and range. MIFARE Classic and LEGIC prime transponders are only supported to a limited extent.
