ESPAGNOLETTE LOCK 750 - screw fixing

Prestige 2Prestige 4VCS 18.2
  • right and left adjustable
  • key retention
  • nickel plated
  • accessories to be ordered separately

Right/left adjustable

Key retention function

90° turning angle

Downloads & Technical data
CustomersupportHello! 👋 We are happy to support you from conception to commissioning.

Prestige 2
CYLINDER SET Z23
CYLINDER SET Z23

with cylinder keys

VCS 18.2
CYLINDER SET Z65
CYLINDER SET Z65

with cylinder keys

Prestige 4
CYLINDER SET Z25
CYLINDER SET Z25

with cylinder keys

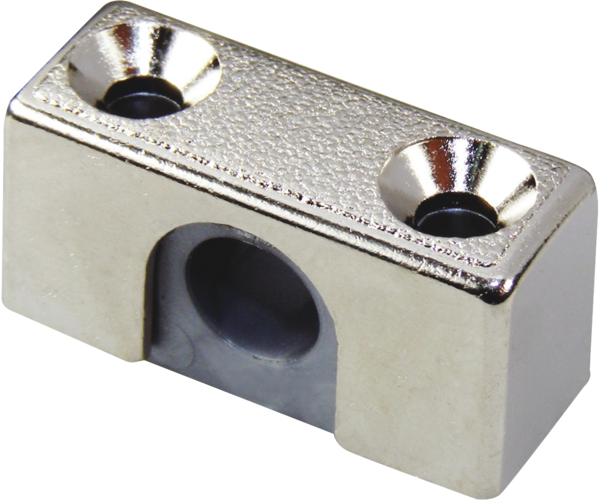

ROD GUIDE 065.2
ROD GUIDE 065.2

for espagnolette lock 750

ROD 6/5
ROD 6/5

for espagnolette lock 750

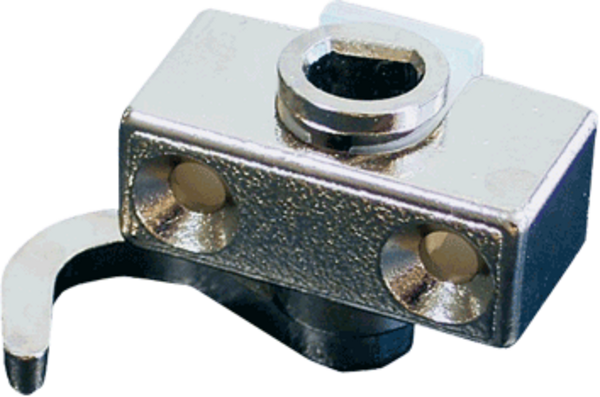

LOCKING HOOK 162.3
LOCKING HOOK 162.3

for espagnolette lock 750

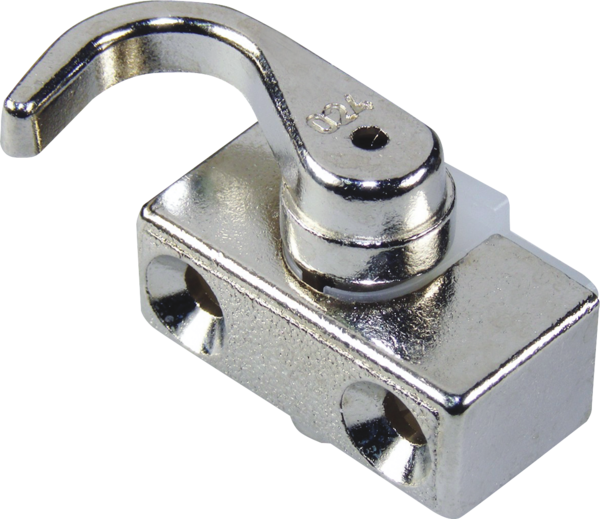

LOCKING HOOK 161.3
LOCKING HOOK 161.3

for espagnolette lock 750

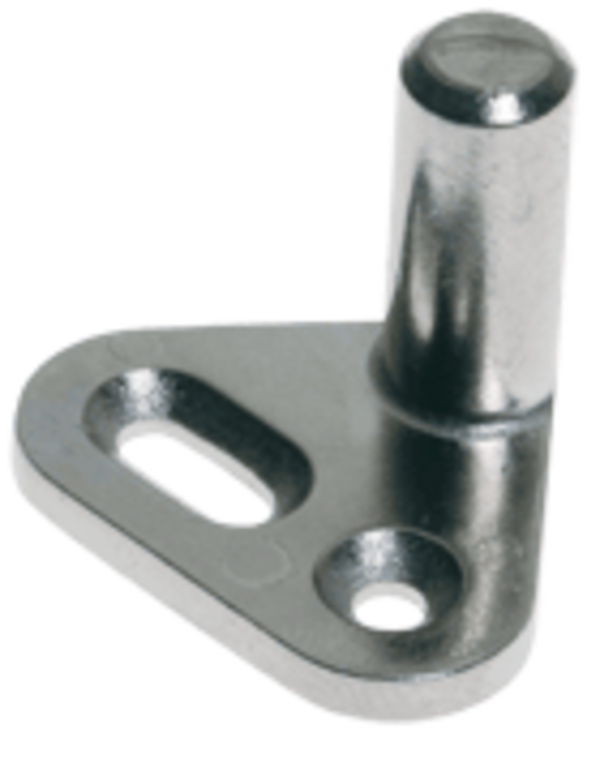

STOP METAL 057
STOP METAL 057

for espagnolette lock 750

Prestige 2VCS 18.2
ROSETTE 18mm
ROSETTE 18mm

to fix on cylinder

STRIKER PLATE 3011
STRIKER PLATE 3011

nickel plated

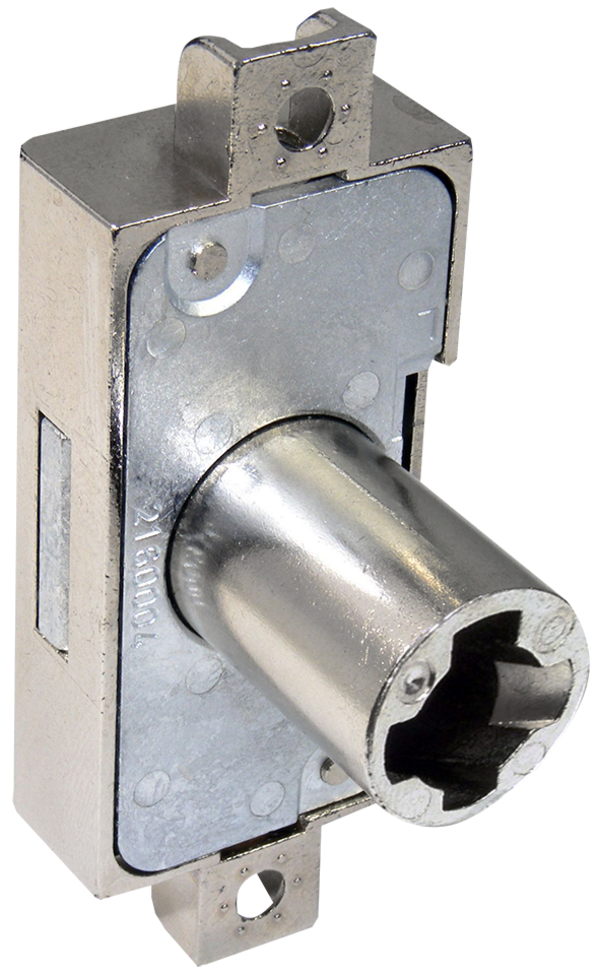

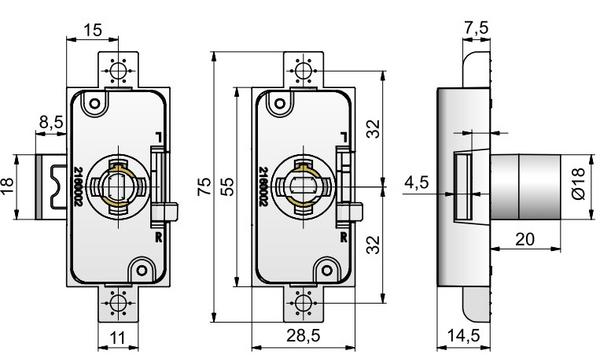

Product details ESPAGNOLETTE LOCK 750

Features:

  • prestige 2
  • cylinder diameter 18mm
  • cylinder lenght 20mm / 22mm / 26mm
  • backset 15mm or 25 mm
  • right and left adjustable
  • including key retention
  • nickel plated

Accessories to be ordered separately:

  • cylinderset Z23 including two B1 keys
  • rosette 18mm
  • locking hook 161.3 & locking hook 162.3
  • rod guide 065.2
  • stop metal 057
  • rod 6/5 - lenghts on request

Further alternatives on request!
